Grand C

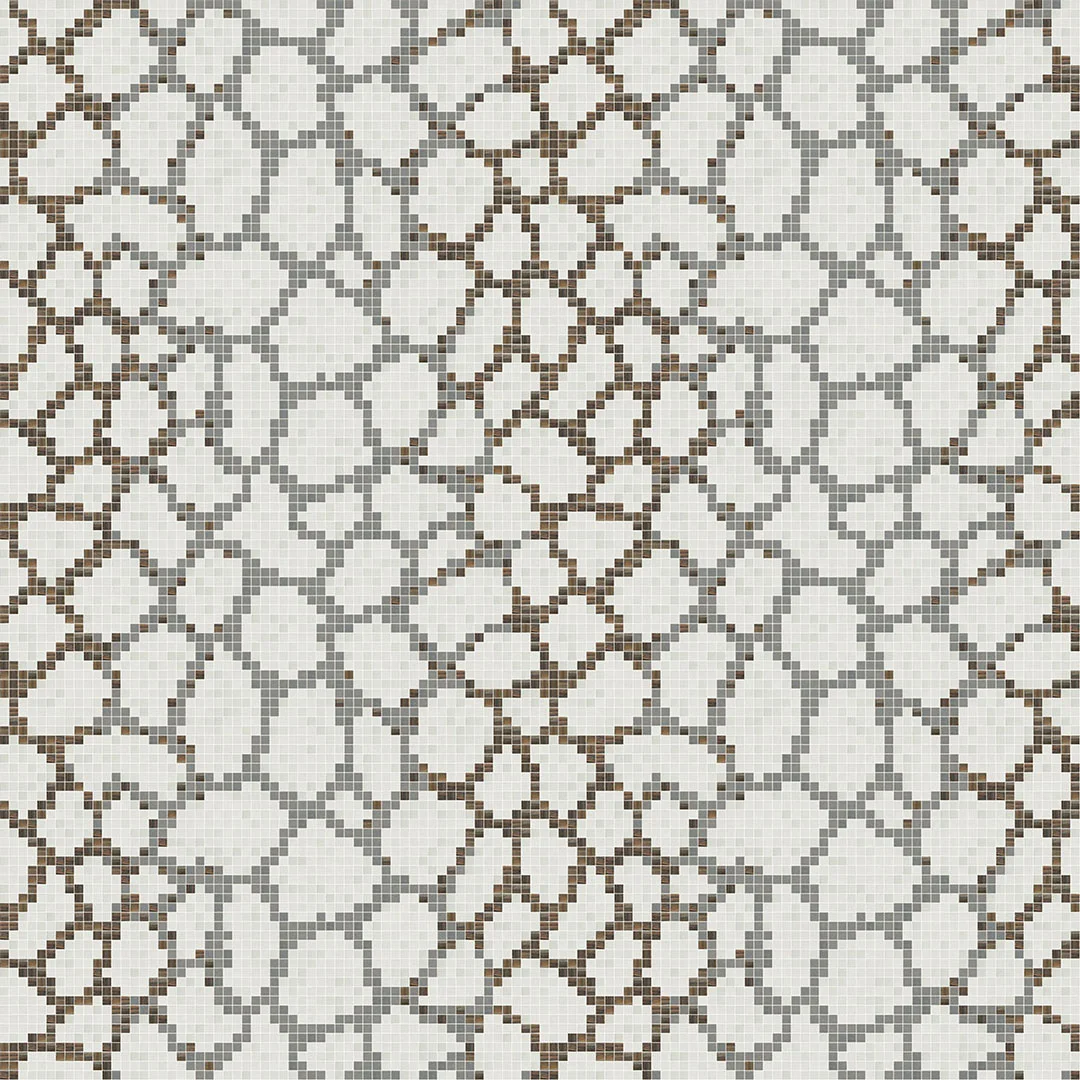

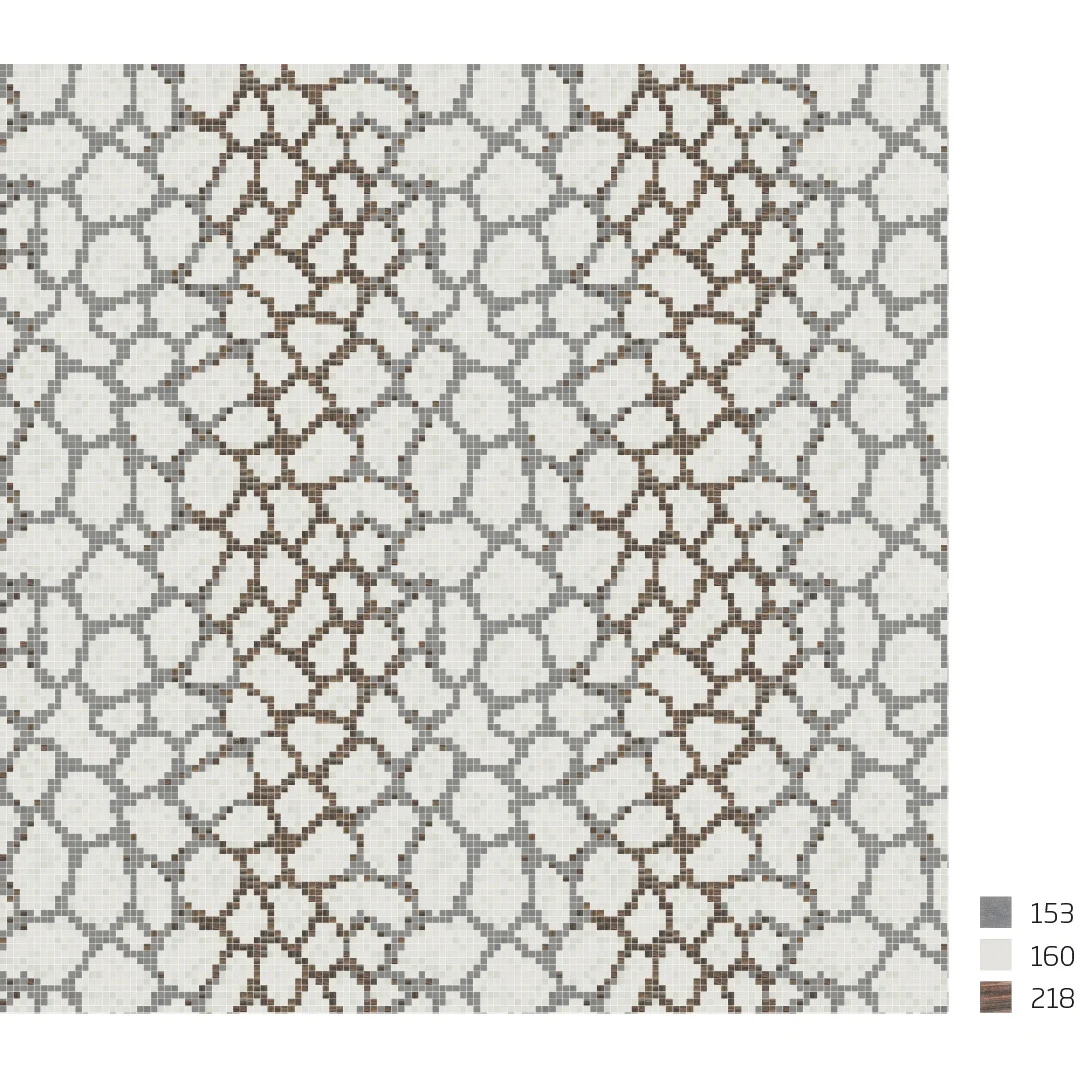

Grand C | 1 x 1 CAD Mosaic

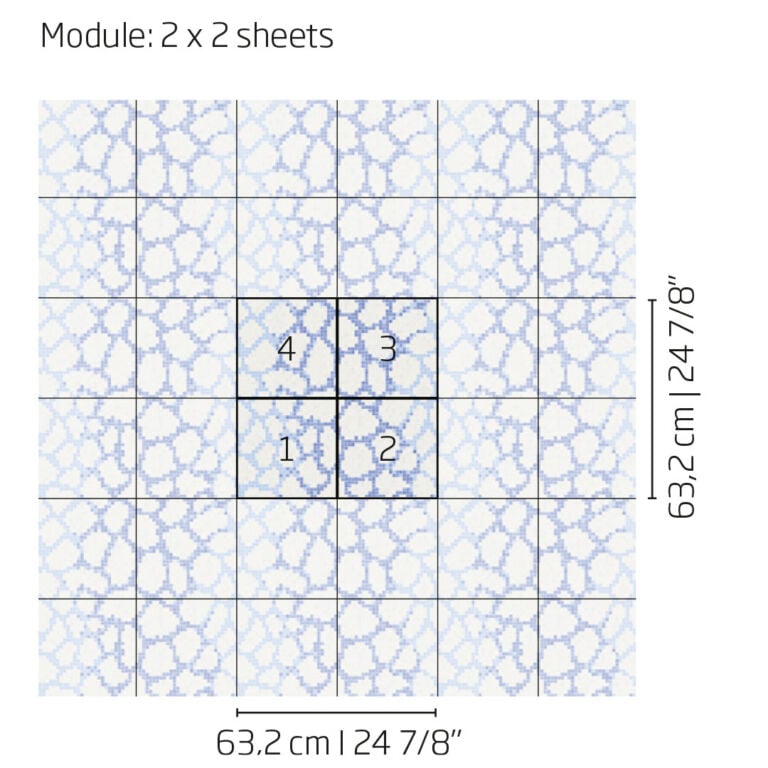

Module size

Modular size: 63.2 x 63.2 cm | 24 7/8″ x 24 7/8″

Suggested grout: Bianco Assoluto

Weight and Dimensions

Size

~ 1 x 1 cm | 3/8” x 3/8”

Thickness

~ 4 mm | 5/32”

Joint

~ 1 mm | 2/48”

Weight

~ 7 Kg/m2 | 1.6 lbs/SQF

Test ASTM

TEST PERFORMED AND REQUIREMENTS

CONCLUSIONS

Range of thickness (ASTM C499)

PASSES

Facial dimensions (ASTM C499)

PASSES

Wedging (ASTM C502)

PASSES

Water absorption (ASTM C373)

PASSES

Thermal shocks (ASTM C484)

PASSES

Bond Strenght (ASTM C482)

PASSES

Crazing (ASTM C424)

PASSES

TEST DATA

UNI EN ISO 10545 (13)
RESISTANCE TO CHEMICAL AGENTS

RESISTANT

ASTM C 484 | UNI EN ISO 10545 (9))
THERMAL SHOCKS RESISTANCE

RESISTANT

UNI EN ISO 10545 (3)
WATER ABSORPTION

NONE

DIN 51094
COLOURS RESISTANCE TO FADING

RESISTANT

UNI EN ISO 10545 (12)
FROST RESISTANCE

RESISTANT

DIN 51097
SLIP RESISTANCE ON BARE FEET

CLASS C

DIN 51130
SLIP RESISTANCE WITH SHOES

R10

Description

These mosaic patterns are inspired by the modular design of wallpaper, utilizing a familiar repeat pattern structure that is translated into customizable mosaic modules.

Designed to create elegant, classical patterns such as damasks, spirals, and arabesques. Each composition showcases refined craftsmanship, perfect for sophisticated and timeless interiors and exteriors, each one carefully crafted by hand with creativity and a commitment to sustainability.

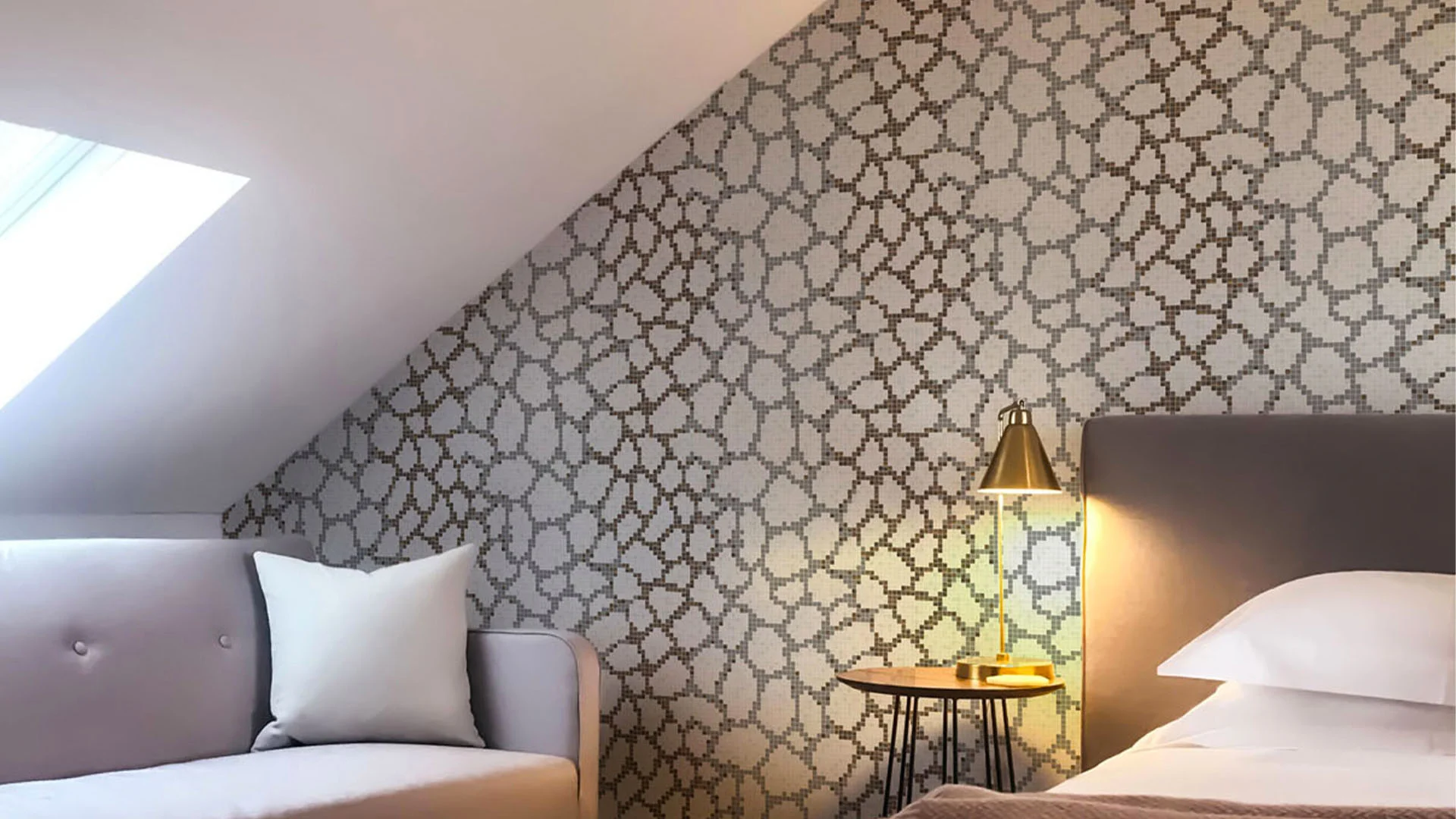

As with all other mosaics, can be laid on the floor and walls, indoors and outdoors, even in contact with water, in showers or swimming pools.
