Liberty Purple

Module size

Suggested grout: Sandstone

Weight and Dimensions

Modular size

26,2 x 31,03 cm | 10 5/16” x 1’ 3/16”

Hand-cut

Sheet size

28,1 x 31,03 cm | 11 1/6” x 1’ 3/16”

Thickness

~ 4 mm | 5/32”

Joint

~ 1 mm | 2/48”

Weight

~ 10 kg/m2 | 1.6 Ib/SQF

Data are indicative only as it is a hand-cut product.

Test ASTM

TEST PERFORMED AND REQUIREMENTS

CONCLUSIONS

Range of thickness (ASTM C499)

PASSES

Facial dimensions (ASTM C499)

PASSES

Wedging (ASTM C502)

PASSES

Water absorption (ASTM C373)

PASSES

Thermal shocks (ASTM C484)

PASSES

Bond Strenght (ASTM C482)

PASSES

Crazing (ASTM C424)

PASSES

TEST DATA

UNI EN ISO 10545 (13)
RESISTANCE TO CHEMICAL AGENTS

RESISTANT

ASTM C 484 | UNI EN ISO 10545 (9))
THERMAL SHOCKS RESISTANCE

RESISTANT

UNI EN ISO 10545 (3)
WATER ABSORPTION

NONE

DIN 51094
COLOURS RESISTANCE TO FADING

RESISTANT

UNI EN ISO 10545 (12)
FROST RESISTANCE

RESISTANT

TECHNICAL REQUIREMENT

For the application in humid zones, use epoxy adhesives and grouts. For further information please contact TREND Group.

Description

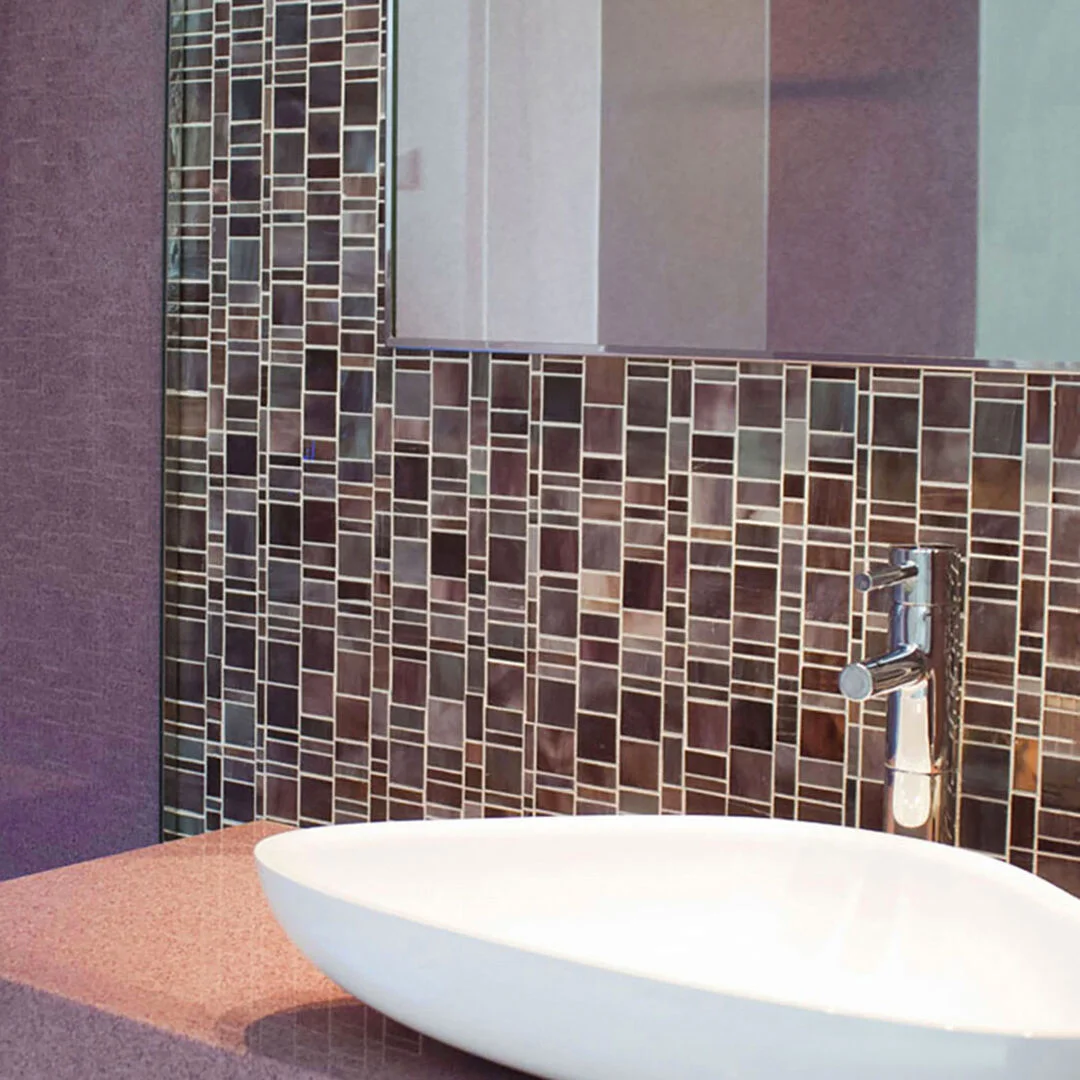

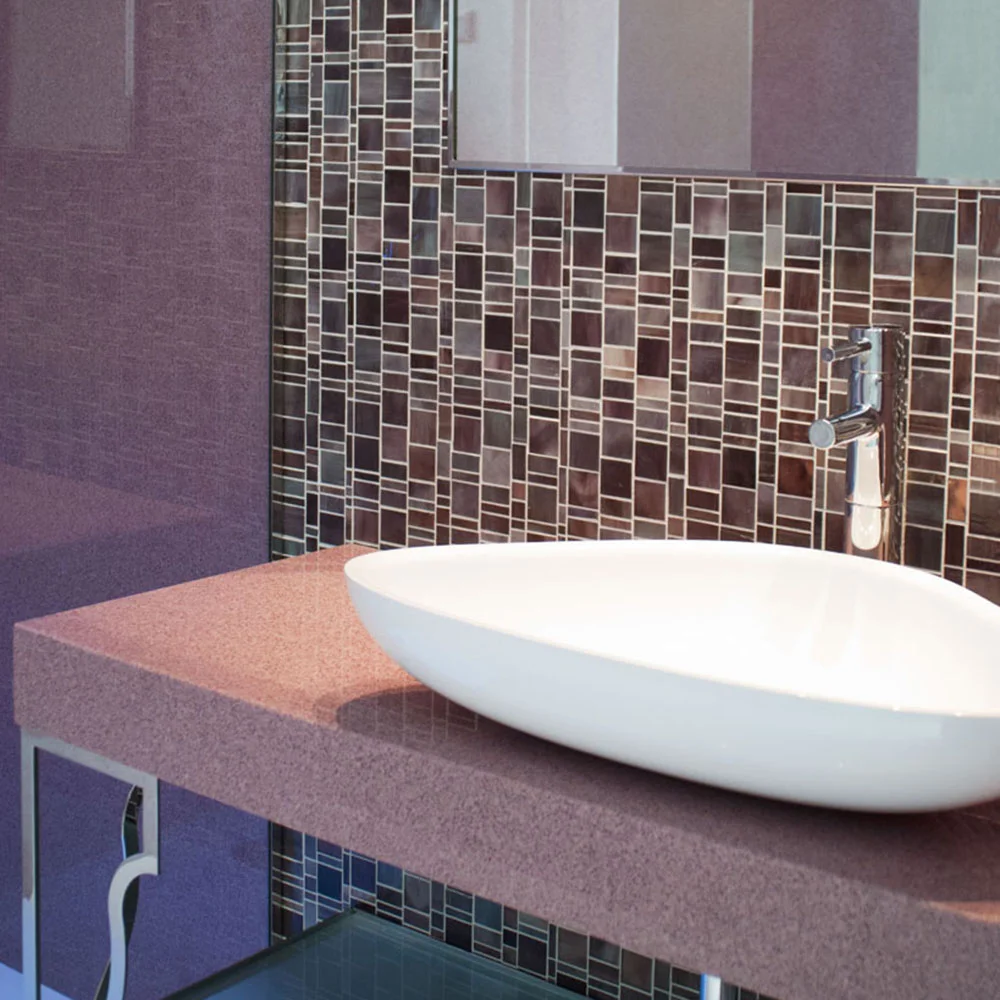

Liberty, a Karma glass collection, is superb as an indoor and outdoor wall covering. As an artisan product, it has a slight lack of symmetry, lending itself to unique projects.
Its design alternates smooth and corrugated tiles to form chrome and iridescent textures.
