Mirage 009

Karma 009 Mirage Corrugated

Suggested grout: Deko

Weight and Dimensions

Size and Modular size

2 x 2 cm | 3/4” x 3/4”
31,6 x 31,6 cm | 12 7/16” x 12 7/16”

4 x 4 cm | 1 1/2” x 1 1/2”
29,3 x 29,3 cm | 11 1/2” x 11 1/2”

2 x 4 cm | 3/4” x 1 1/2” Aligned joint
29,3 x 31,6 cm | 11 1/2” x 12 7/16”

2 x 4 cm | 3/4” x 1 1/2” Staggered joint
29,3 x 29,5 | 11 1/2” x 11 5/8”

4 x 8 cm | 11/2″ x 3” Aligned joint
25,1 x 29,3 cm | 9 7/8” x 11 1/2”

Thickness

~ 4 mm | 5/32”

Joint

~ 1 mm | 2/48”

Weight

~ 10 kg/m2 | 1.6 Ib/SQF

Data are indicative only as it is a hand-cut product.

Test ASTM

TEST PERFORMED AND REQUIREMENTS

CONCLUSIONS

Range of thickness (ASTM C499)

PASSES

Facial dimensions (ASTM C499)

PASSES

Wedging (ASTM C502)

PASSES

Water absorption (ASTM C373)

PASSES

Thermal shocks (ASTM C484)

PASSES

Bond Strenght (ASTM C482)

PASSES

Crazing (ASTM C424)

PASSES

TEST DATA

UNI EN ISO 10545 (13)
RESISTANCE TO CHEMICAL AGENTS

RESISTANT

ASTM C 484 | UNI EN ISO 10545 (9))
THERMAL SHOCKS RESISTANCE

RESISTANT

UNI EN ISO 10545 (3)
WATER ABSORPTION

NONE

DIN 51094
COLOURS RESISTANCE TO FADING

RESISTANT

UNI EN ISO 10545 (12)
FROST RESISTANCE

RESISTANT

TECHNICAL REQUIREMENT:

For the application in humid zones, use epoxy adhesives and grouts. For further information please contact TREND Group.

Description

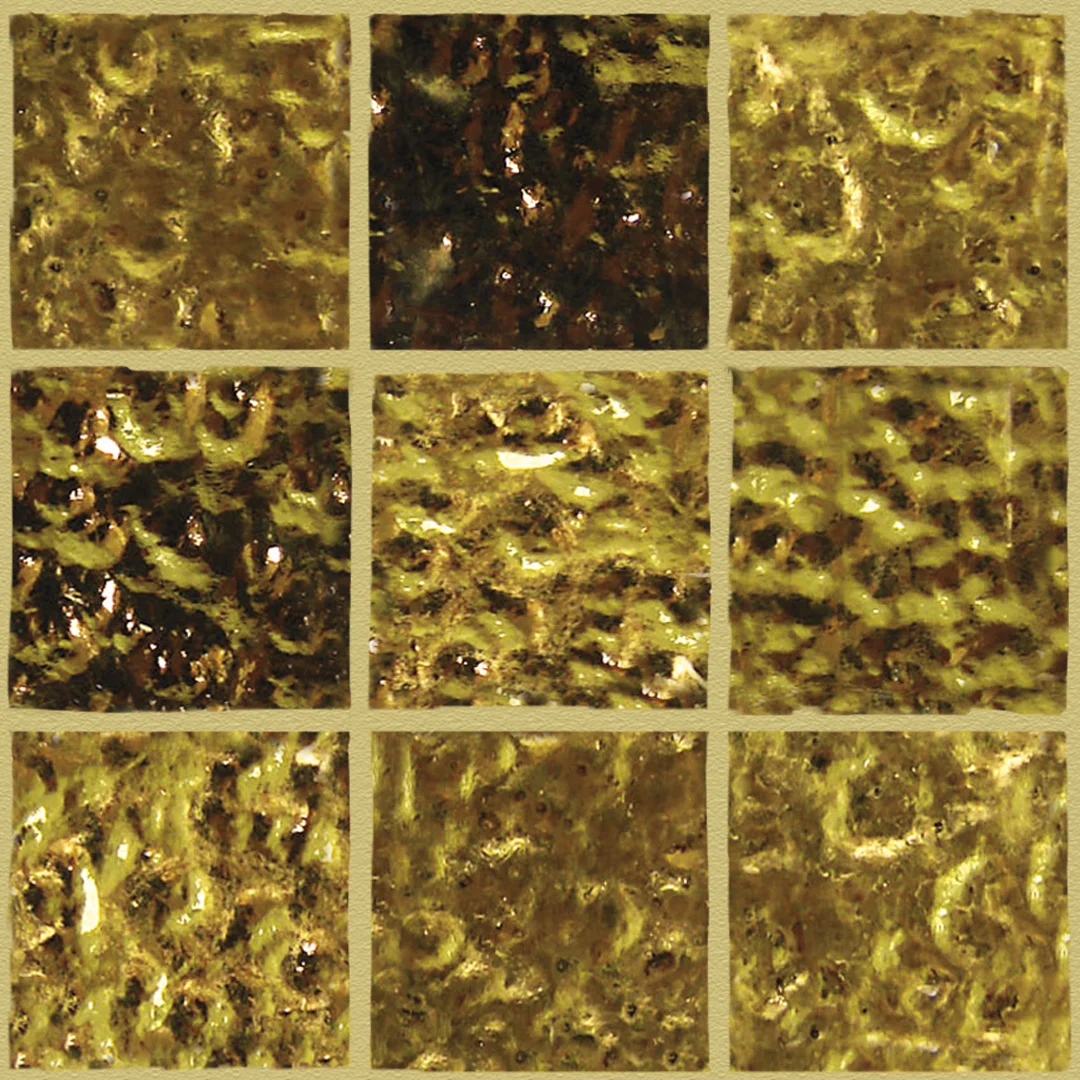

Mirage is a handcrafted glass tile collection featuring a special metallic finish that delivers distinctive, radiant reflections. Similar in brilliance and prestige to gold mosaic, it offers a luxurious, luminous alternative for projects seeking a precious-metal effect with a contemporary twist.

The collection consists of full-body mosaic tiles, created by processing a glass plate which is then cut to size by skilled artisans. Each piece is finished with a metallic treatment that enriches the surface with deep tones.

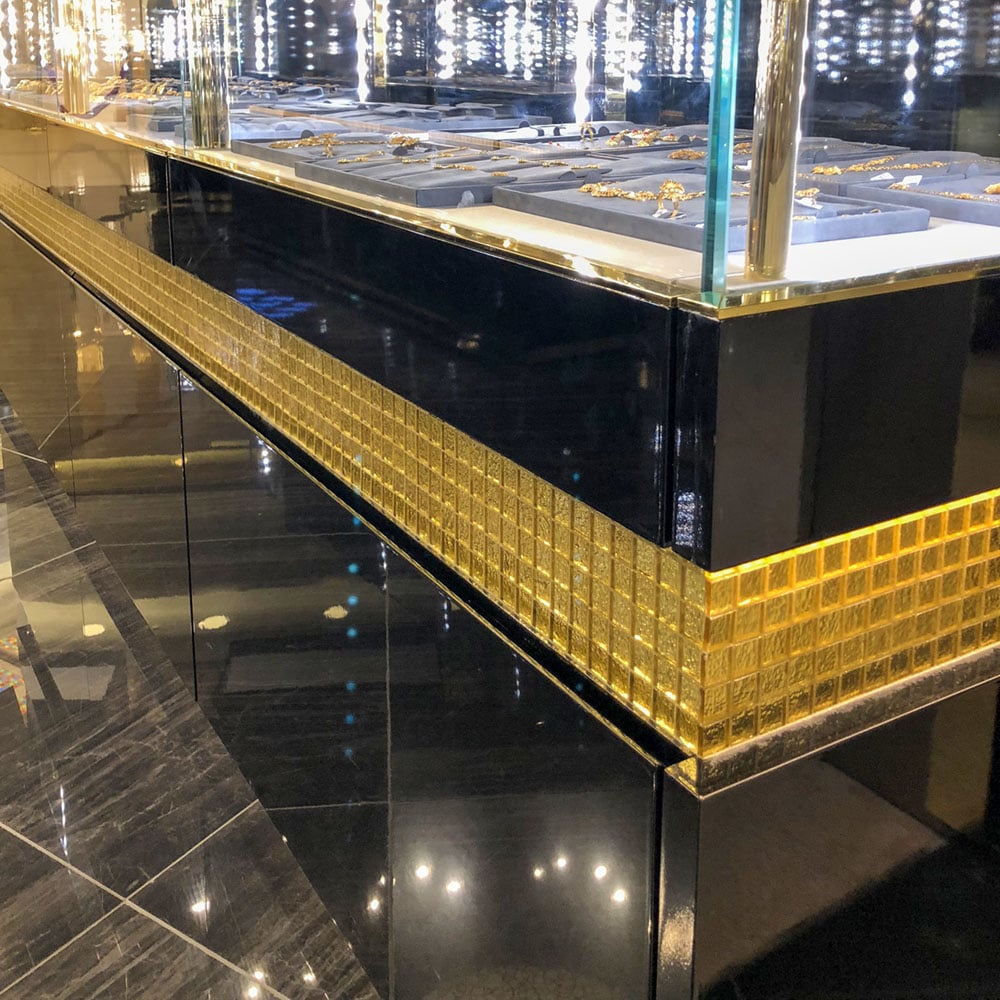

Primarily designed for wall applications, Mirage can also be installed in low- to medium-traffic areas. Meticulously handcrafted, each tile reveals subtle, natural surface undulations, an exclusive signature of true artisanal luxury. It is ideal for creating custom mixes with other colors, adding a rich and luminous accent to the composition. Custom sizes are available upon request.
