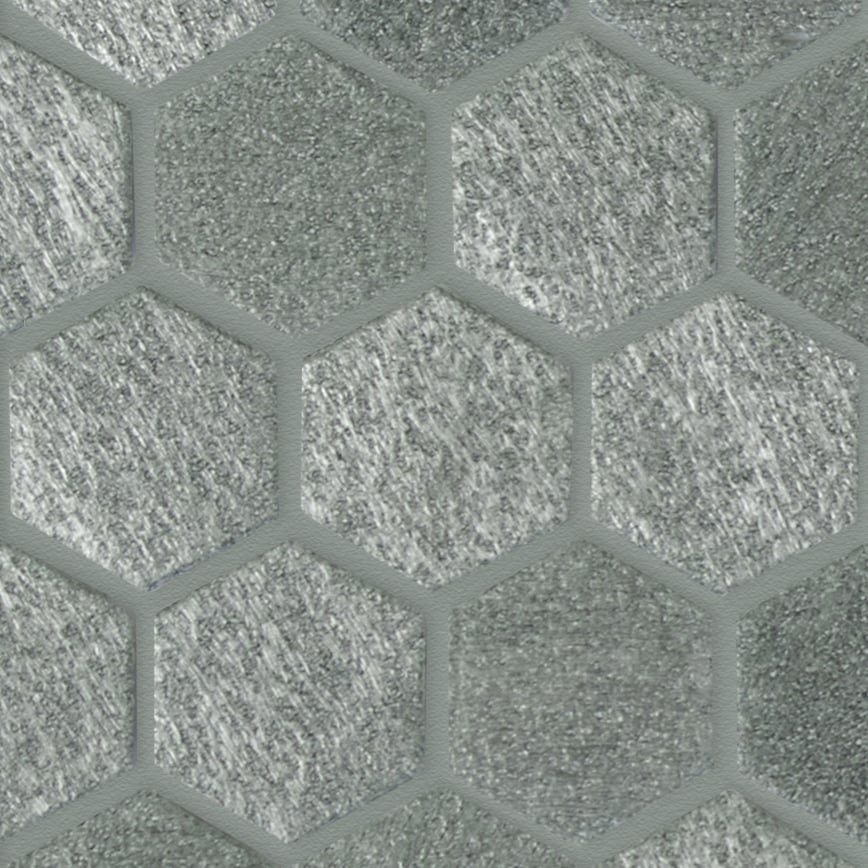

Hex 2102

Hexagonal 2102

Module size

Suggested grout: Raven

Weight and Dimensions

Size

~ 3,5 x 3 cm | 1 3/16” x 1 3/8”
(35,61 x 30,84 mm)

Thickness

~ 5 mm | 3/16”

Modular size

28,4 x 29,6 cm
11 3/16” x 11 21/32”

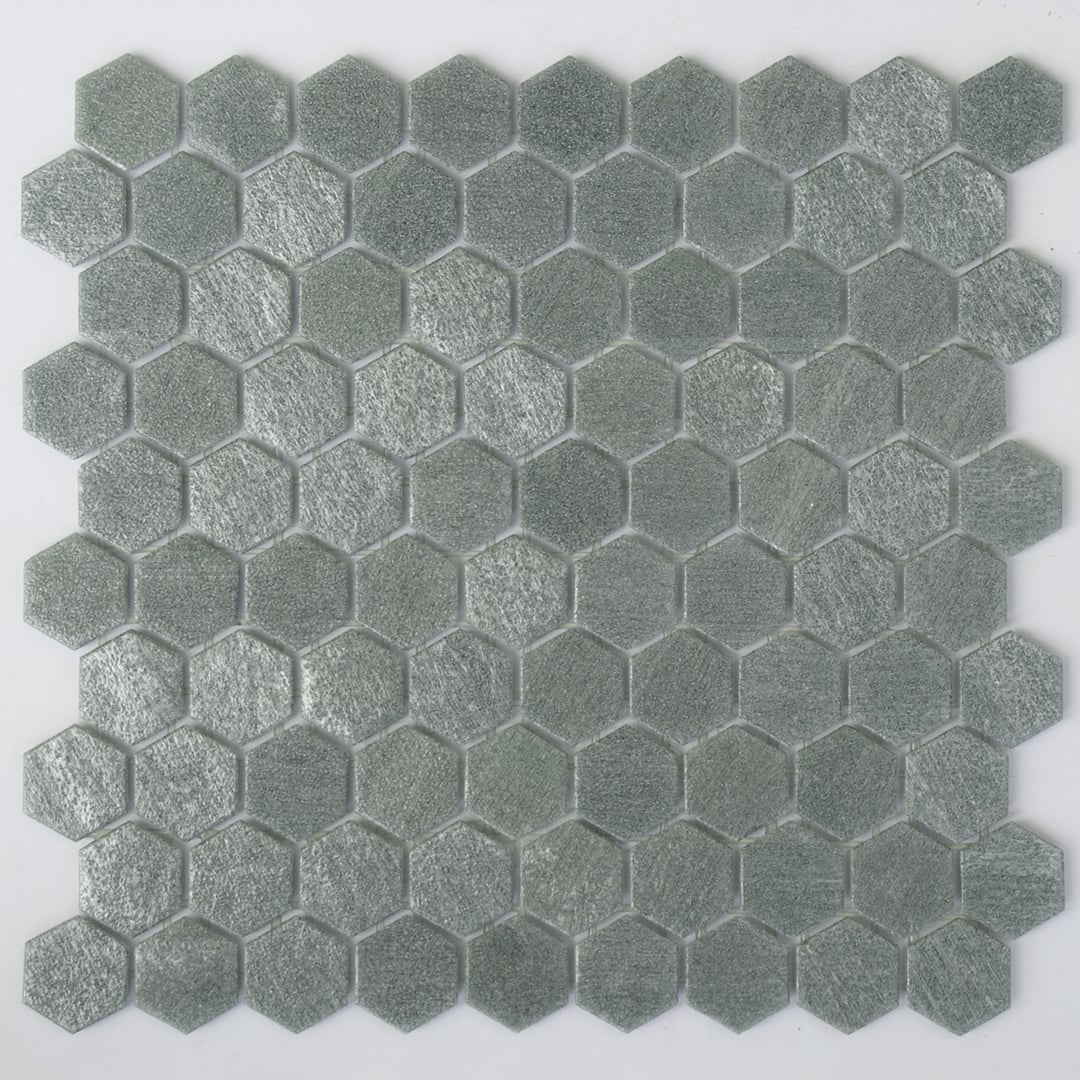

Sheet size

32,6 x 35 cm
12 27/32” x 13 25/32”

Joint

~ 2 mm | 3/32”

Weight

~ 9 kg/m2 | 1.84 Ibs/SQF

Quantity per carton

1,411 m2 | 15.177 SQF

Cartons per pallet

Pallet Weight

~ 1000 Kg | 2204.62 lb

Test ASTM

TEST PERFORMED AND REQUIREMENTS

CONCLUSIONS

Range of thickness (ASTM C499)

PASSES

Facial dimensions (ASTM C499)

PASSES

Wedging (ASTM C502)

PASSES

Water absorption (ASTM C373)

PASSES

Thermal shocks (ASTM C484)

PASSES

Bond Strenght (ASTM C482)

PASSES

Crazing (ASTM C424)

PASSES

TEST DATA

UNI EN ISO 10545 (13)
RESISTANCE TO CHEMICAL AGENTS

RESISTANT

ASTM C 484 | UNI EN ISO 10545 (9))
THERMAL SHOCKS RESISTANCE

RESISTANT

UNI EN ISO 10545 (3)
WATER ABSORPTION

NONE

DIN 51094
COLOURS RESISTANCE TO FADING

RESISTANT

UNI EN ISO 10545 (12)
FROST RESISTANCE

RESISTANT

DIN 51097
SLIP RESISTANCE ON BARE FEET

CLASS B

Description

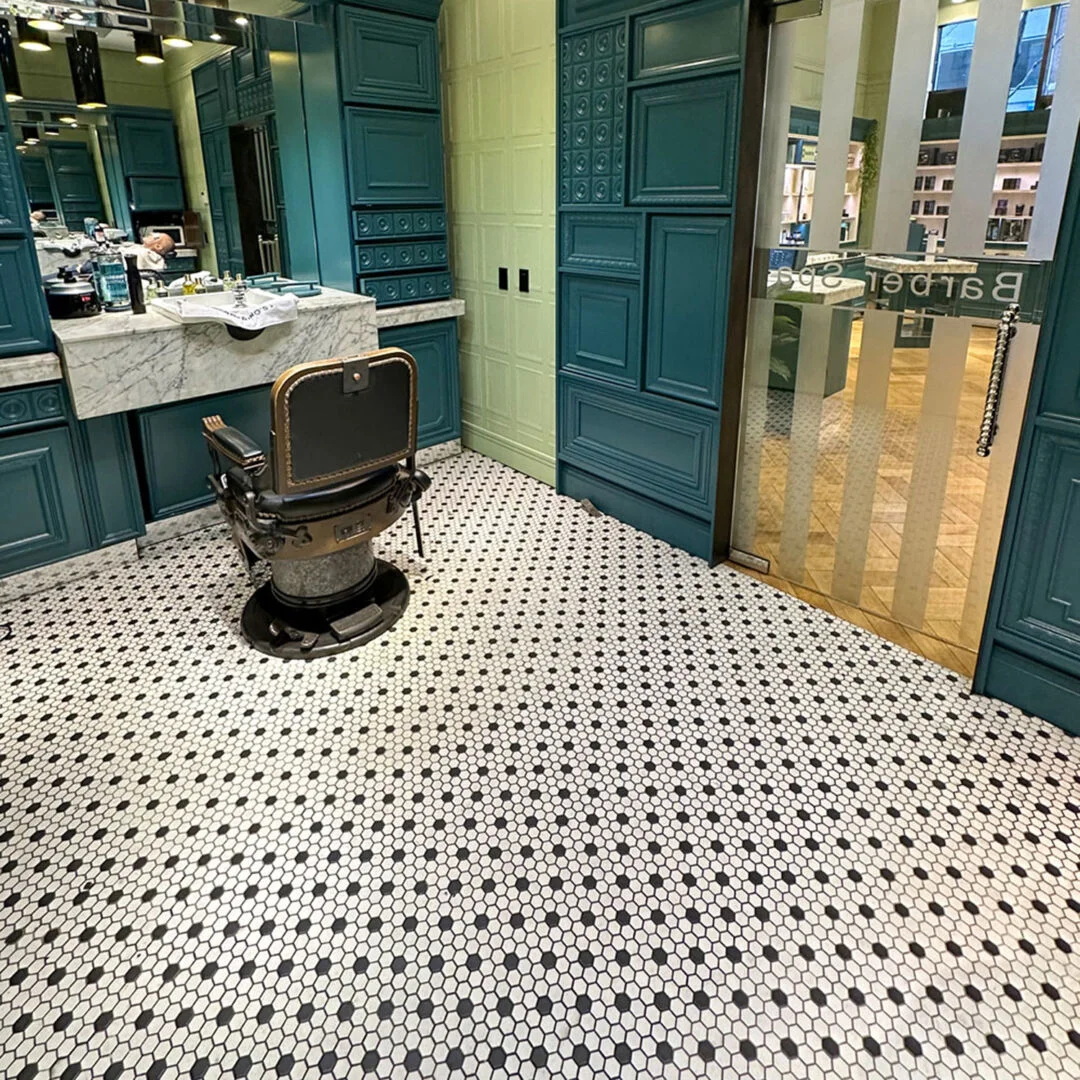

Hexagonal mosaic is crafted from semi-transparent or opaque molten glass, molded into hexagonal tiles, with some colors veined with sparkling smalti and aventurine stone. Hexagonal mosaics can be installed on floors or vertically on both interior and exterior surfaces, including wet areas such as shower and swimming pools.

Thanks to the tile size and the frequency of joints, the mosaic naturally provides a non-slip surface.

Custom color mixes are available upon request.
